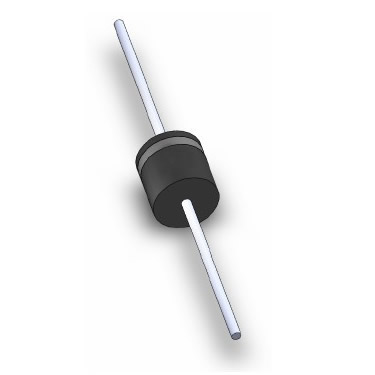

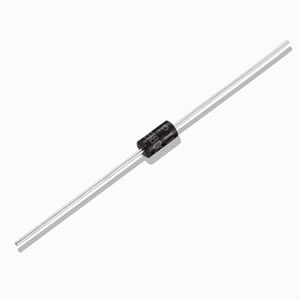

Transient suppression diodes (PTVS)
Embedded type component, reaction speed;
Function of the transient rate from 400 W to 30000 W.
Voltage from 3.3 V to 600 V or higher.
Introduced: the transient voltage suppression diode is a kind of clamping type over-voltage protection device, it can limit the high voltage at the rate of pS level within a safe range, so as to protect the circuit.
Application: in the semiconductor and sensitive electronic components overvoltage, ESD protection, mainly includes: consumer products, industrial products, communications, computer, automotive, power supply, signal line protection and military and aerospace navigation system and control system.Reaction speed, voltage inhibition ability is strong, has the SMAJ, SMBJ, SMCJ, SMDJ, P4KE, SA, P6KE, 1.5 KE, 3 KP, 5 KP, 15 kpa, 20 kpa, 30 kpa series and low capacitance SAC (500 w, 50 pf), LCE (1.5 KW, pf 100) series.
|
|
| Working voltage: 5 v to 495 v
Power: 400 w
Current: 39 A ~ 0.52 A |
|
|
|
| Operating voltage: 5.8 V to 495 V
Power: 600 w
Current: 58.1 ~ 0.75 A A |
|
|
|
| Operating voltage: 5.8 V to 495 V
Power: 1500 w
Current: 144.8 A ~ 2 A |
|
|
|
| Operating voltage: 5.8 V to 495 V
Power: 3000 w
Current: 326.1 ~ 8.1 A A
|
|
|
|
| Operating voltage: 5.8 V to 495 V
Power: 5000 w
Current: 554.3 A ~ 12 A |
|
|
|
